Engineered for Corrosive Slurry, High Vibration, and Critical Displacement in Flue Gas Treatment

In power, chemical, and metallurgical plants, Flue Gas Desulfurization (FGD) and Denitrification (DeNOx) pipelines operate under extreme conditions. Highly corrosive media, abrasive limestone slurry, and constant vibration from pumps and valves place immense stress on piping systems. Standard single-sphere joints or metal compensators often fail to provide adequate protection.

Our triple-sphere abrasion-resistant rubber expansion joints are specifically engineered to solve these challenges—delivering superior flexibility, durability, and leak-free performance in the most demanding flue gas applications.

Key Engineering Advantages

1. Superior Multi-Directional Movement Compensation
The triple-sphere configuration offers significantly greater axial, lateral, and angular displacement capacity compared to single-sphere designs. At the critical connection between the FGD absorber and flue duct, it absorbs thermal expansion and foundation settlement, dramatically reducing stress concentrations and protecting fragile FRP or rubber-lined piping.

2. Targeted Abrasion & Corrosion Resistance
FGD slurry contains a high concentration of solid particles that cause severe erosion. Our joints utilize high-quality abrasion-resistant rubber (EPDM or Neoprene) with a smooth inner wall to resist acid/alkali corrosion and high-velocity slurry scouring. The multi-layer nylon cord reinforcement ensures exceptional bursting strength under high-pressure conditions.

3. Vibration Isolation & Noise Reduction
Oxidation fans and slurry circulation pumps are primary vibration sources in FGD systems. As a high-performance elastomer, the rubber expansion joint effectively interrupts the transmission of acoustic waves and physical vibration—protecting pipe supports, downstream equipment, and improving the plant's acoustic environment.

4. Reliable Heavy-Duty Flanged Connection
Each joint is equipped with corrosion-treated, heavy-duty flanges. In the high-humidity, acidic environment of FGD and DeNOx systems, precision sealing surfaces and bolt hole designs are critical to prevent leakage. We achieve this through high-precision molds and strict vulcanization processes.

Engineering Selection Guide
When specifying expansion joints for flue gas systems, always confirm:

• Media Temperature: SCR DeNOx systems may involve high-temperature flue gas, requiring high-temp rubber (silicone or fluoro-rubber).
• Pressure Rating: Must match the system's maximum working pressure (PN10, PN16, etc.).
• Vacuum Conditions: Under negative pressure, an internal vacuum ring is required to prevent rubber layer collapse.

About CHHSY (Huashunying)

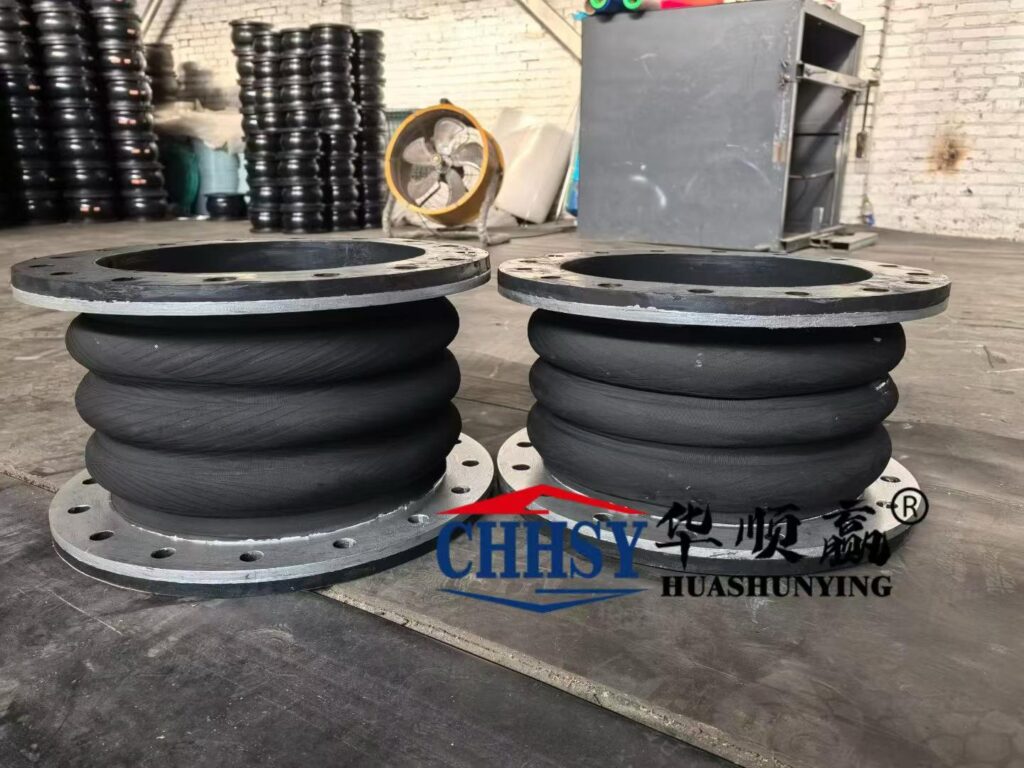

This triple-sphere abrasion-resistant rubber expansion joint is manufactured by CHHSY, a leading supplier of rubber expansion joints for FGD, DeNOx, and high-wear slurry piping. Our rugged construction and precision flange fit are engineered to solve the most challenging pipeline connection problems.

Looking for a Reliable Rubber Expansion Joint Supplier?
Whether you are managing a flue gas treatment project or facing flexible piping connection challenges, our engineering team is ready to assist. Contact us today for technical support and factory-direct pricing.
