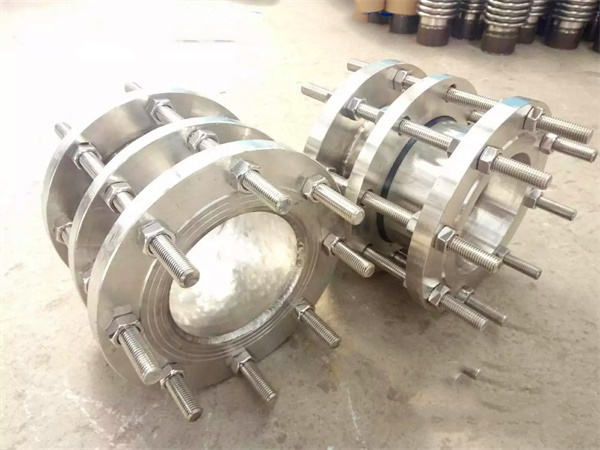

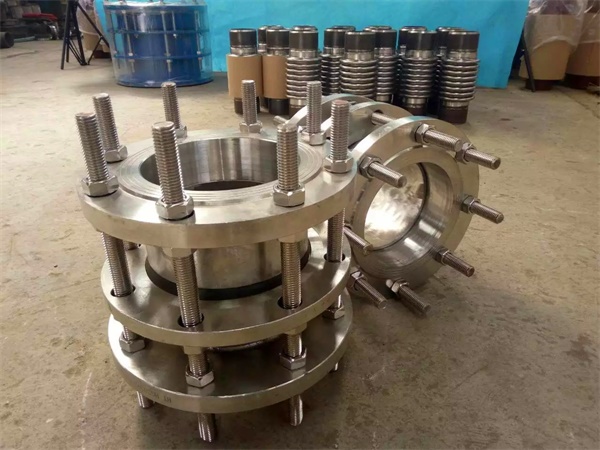

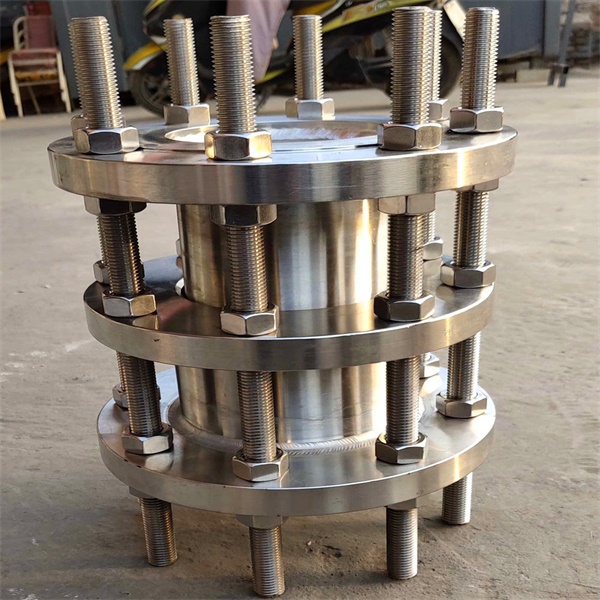

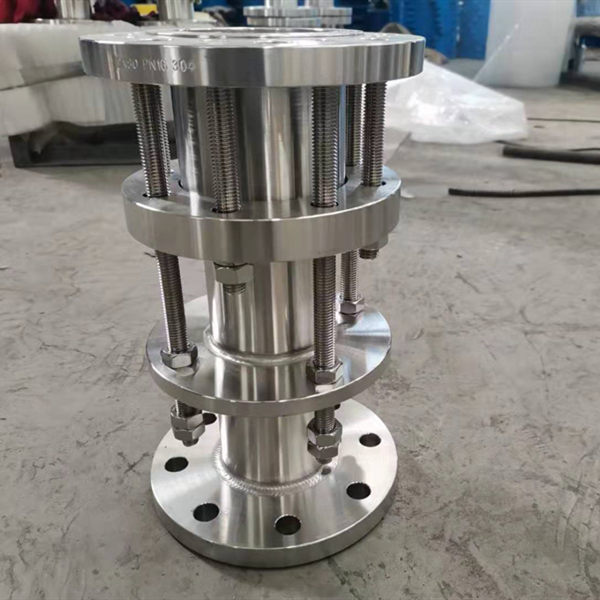

The stainless steel dismantling joint is a new type of product developed on the basis of the original dismantling joint product. This product increases the length of the end tube, effectively avoiding the generation of compensation due to the increase of the length of the pipeline. . The series of disassembly compensation joints are novel and reasonable in design, simple and compact in structure, good in sealing performance, convenient in loading and unloading, firm and reliable in telescopic limit, and long in service life.
large expansion and easy maintenance.
1 Large amount of expansion and long service life.
2 Facilitate the disassemble and assembly of the valve, which is conducive to the regular maintenance of the pipeline.
3 This product can transmit axial thrust to the entire pipeline, and can evenly spread the pressure to effectively protect the pipeline from the adverse effects caused by the subsidence.
4 Excellent material and stable operation.
5 Both ends are flange for easy and quick installation.
The stainless steel dismantling joint is suitable for conveying seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam and granular powder with a temperature not higher than 400 degrees.
The stainless steel dismantling joint is suitable for the pipe connecting both sides and the flange. When installing, adjust the installation length of the two ends of the product and the flange, and tighten the pressure bolt evenly in the diagonal direction to make it a whole and have a certain displacement. When it is convenient to install and repair, it can be adjusted according to the size of the site. When working, the axial thrust can be transmitted to the entire pipeline.

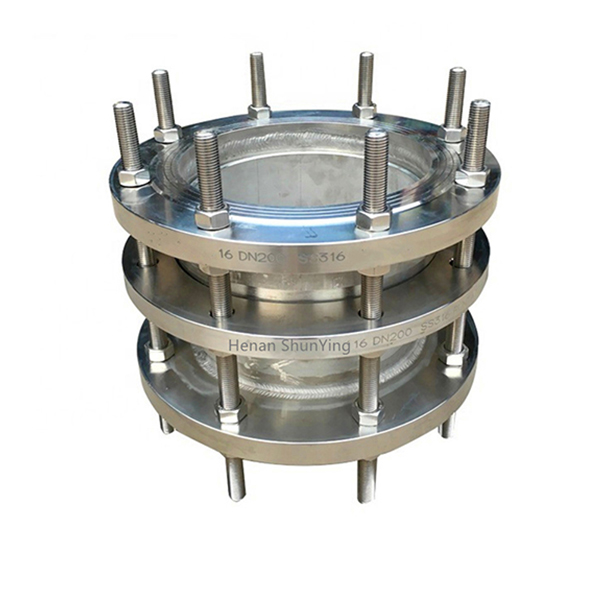

The stainless steel dismantling joint is composed of a body, a sealing ring, a gland, and a short pipe flange, a force transmission screw and the like. The pipe can be freely stretched and contracted in the allowable amount of expansion and contraction, and once it exceeds its maximum expansion and contraction amount, the limit is obtained. Ensure the safe operation of the pipeline, especially for connections in pipes with vibration or a certain degree of inclination and cornering. It can reduce the pressure thrust (blind plate force) of the connected parts and compensate the installation error of the pipeline. Thereby extending the service life of the pipeline and protecting the safe operation of the line. And installed on the pipeline line can facilitate the disassemble and maintenance of the valve, and can overcome the adverse effects of the trap on the pipeline.

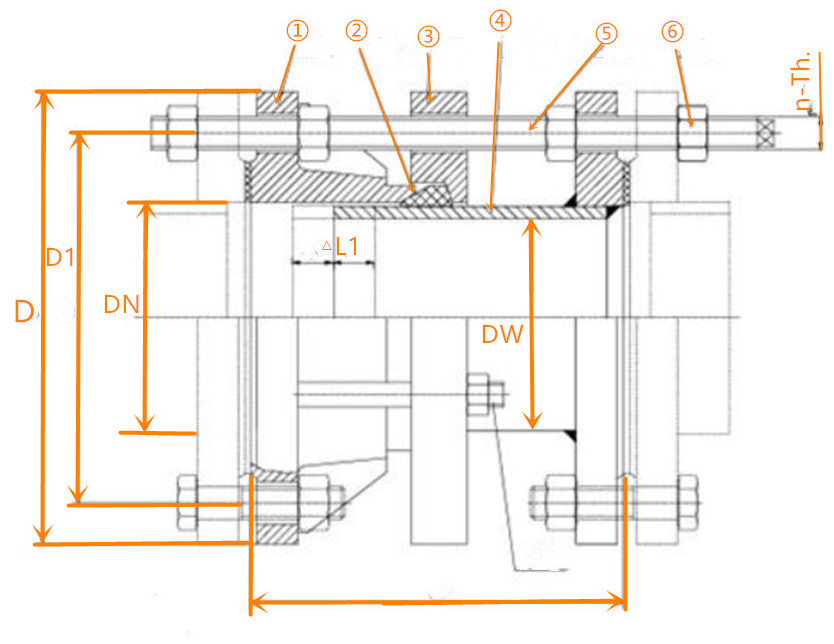

NO. | Name | Material |
1 | Valve body | SS304 SS316 |
2 | Gasket | NBR EPDM |
3 | follower | SS304 SS316 |
4 | limited short pipe | SS304 SS316 |
5 | stud | SS304 SS316 |
6 | nut | SS304 SS316 |
Nominal Diameter DN | External diameter of pipe | Length | Flange connecting dimension | ||||||||
Dw | 0.6Mpa | 1.0Mpa | |||||||||
L | L2 | D | D1 | n-Th. | b | D | D1 | n-do | b | ||
65 | 76 | 400 | 40 | 160 | 130 | 4-M12 | 16 | 185 | 145 | 4-M16 | 20 |
80 | 89 | 190 | 150 | 4-M16 | 18 | 200 | 160 | 8-M16 | 22 | ||
100 | 114 | 210 | 170 | 220 | 180 | 24 | |||||
125 | 140 | 240 | 200 | 8-M16 | 20 | 250 | 210 | 26 | |||
150 | 168 | 265 | 225 | 285 | 240 | 8-M20 | |||||
200 | 219 | 320 | 280 | 22 | 340 | 295 | 28 | ||||
250 | 273 | 375 | 335 | 12-M16 | 24 | 395 | 350 | 12-M20 | |||
300 | 325 | 420 | 50 | 440 | 395 | 12-M20 | 445 | 400 | |||
350 | 377 | 490 | 445 | 26 | 505 | 460 | 16-M20 | 30 | |||
400 | 426 | 540 | 495 | 16-M20 | 28 | 565 | 515 | 16-M24 | 32 | ||
450 | 480 | 595 | 550 | 615 | 565 | 20-M24 | |||||
500 | 530 | 645 | 600 | 20-M20 | 30 | 670 | 620 | 34 | |||
600 | 630 | 440 | 755 | 705 | 20-M24 | 780 | 725 | 20-M27 | 36 | ||
700 | 720 | 860 | 810 | 24-M24 | 32 | 895 | 840 | 24-M27 | 40 |
NOTES:
