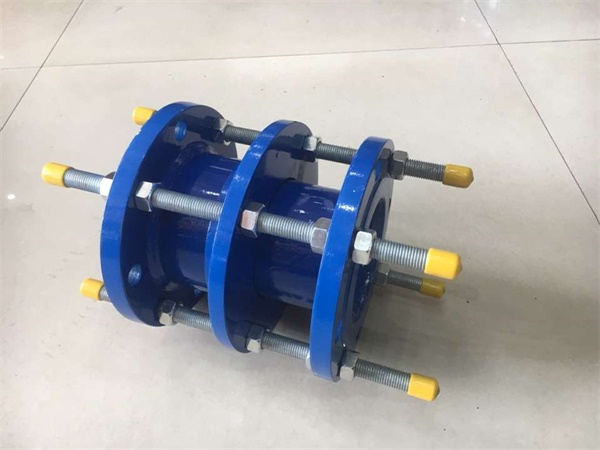

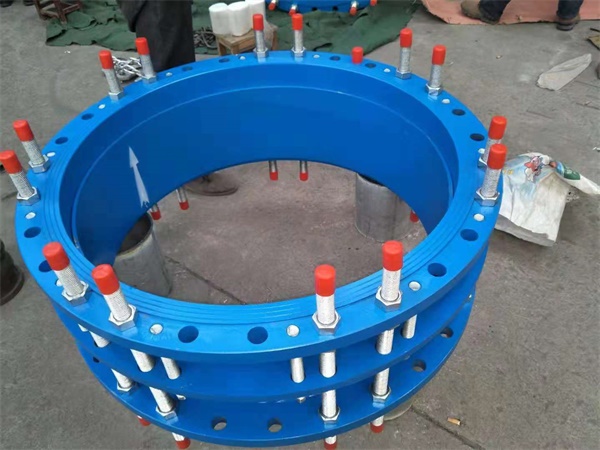

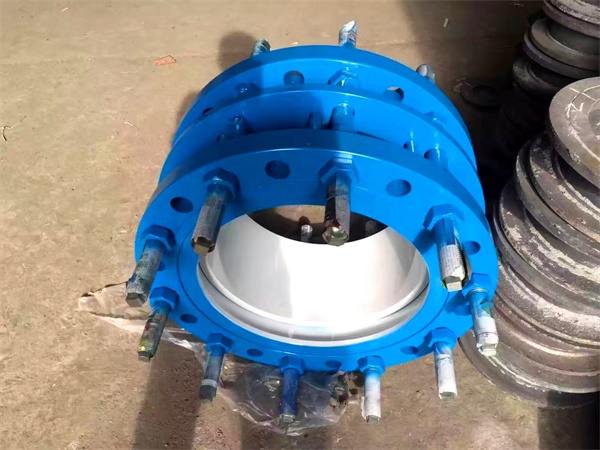

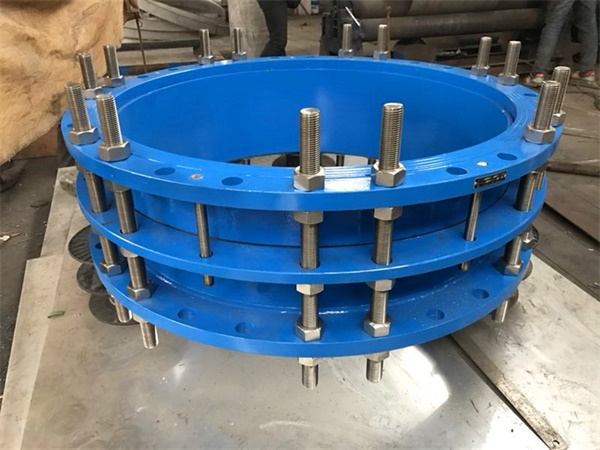

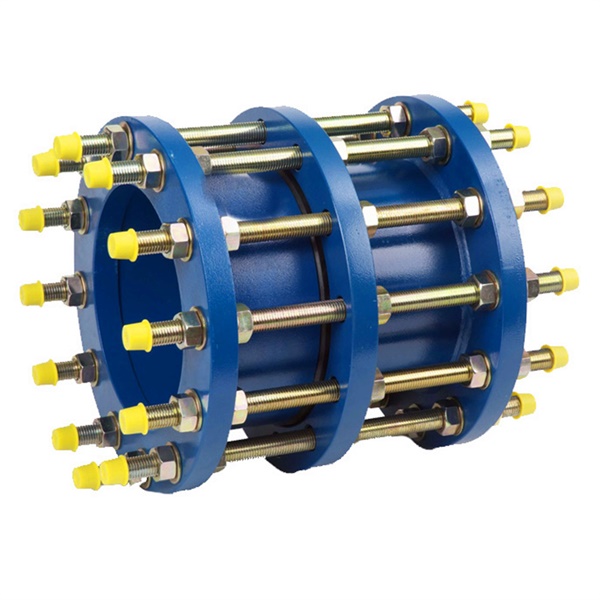

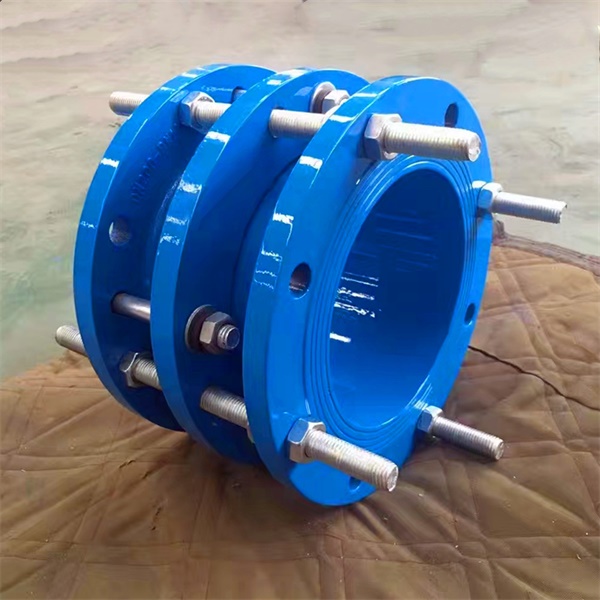

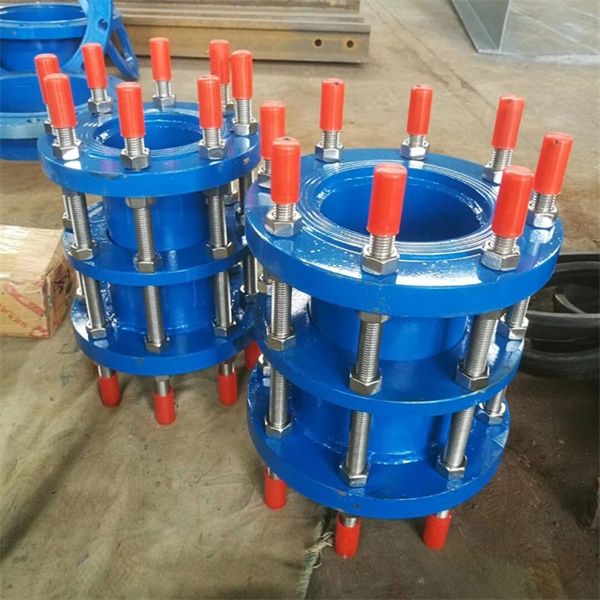

C2F type dismantling joint



Product advantages:

1 Large amount of expansion and long service life.
2 Facilitate the disassembly and assembly of the valve, which is conducive to the regular maintenance of the pipeline.
3 This product can transmit axial thrust to the entire pipeline, and can evenly spread the pressure to effectively protect the pipeline from the adverse effects caused by the subsidence.
4 Excellent material and stable operation.
5 Both ends are flanged for easy and quick installation.


Application:

C2F type dismantling joint is suitable for transporting seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam and granular powder with a temperature not higher than 250 degrees.


Performance:

The C2F type dismantling joint can reduce the pressure thrust (blind plate force) of the connected parts and compensate the pipeline installation error. Thereby extending the service life of the pipeline and protecting the safe operation of the line. And installed on the pipeline line can facilitate the disassembly and maintenance of the valve, and can overcome the adverse effects of the trap on the pipeline. C2F disassembly expansion joints are adjusted according to site size. When working, axial thrust can be transmitted to the entire pipeline.


Structure:

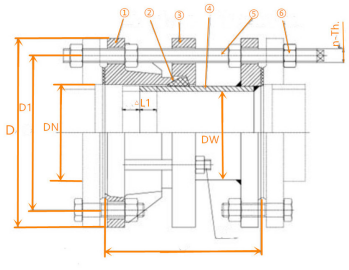

The C2F type dismantling joint is composed of a body, a sealing ring, a gland, a short pipe flange, a force transmission screw and the like. The pipe can be freely stretched and contracted in the allowable amount of expansion and contraction, and once it exceeds its maximum expansion and contraction amount, the limit is obtained. Ensure the safe operation of the pipeline, especially for connections in pipes with vibration or a certain degree of inclination and cornering.

NO.	Name	Material
1	Valve body	Carbon steel SS304 SS316
2	Gasket	NBR EPDM
3	follower	Carbon steel SS304 SS316
4	limited short pipe	Carbon steel SS304 SS316
5	stud	Carbon steel SS304 SS316
6	nut	Carbon steel SS304 SS316

Nominal Diameter DN	External diameter of pipe Dw	Length		Flange connecting dimension
				0.6Mpa				1.0Mpa
		L	L1	D	D1	n-Th	b	D	D1	n-Th	b
65	76	200	40	160	130	4-M12	16	185	145	4-M16	20
80	89			190	150	4-M16	18	200	160	8-M16	22
100	114			210	170	4-M16	18	220	180		24
125	140			240	200	8-M16	20	250	210		26
150	168			265	225		20	285	240	8-M20	26
200	219			320	280		22	340	295	8-M20	28
250	273			375	335	12-M16	24	395	350	12-M20
300	325	220	50	440	395	12-M20	24	445	400	12-M20
350	377			490	445	12-M20	26	505	460	16-M20	30
400	426			540	495	16-M20	28	565	515	16-M24	32
450	480			595	550	16-M20	28	615	565	20-M24	32
500	530			645	600	20-M20	30	670	620	20-M24	34
600	630	240		755	705	20-M24	30	780	725	20-M27	36
700	720	240		860	810	24-M24	32	895	840	24-M27	40

NOTES:

Flange is available with DIN Standard,ANSI Standard,JIS Standard,and BS Standard， GOST Standard, EN Standard
The size is available DN65- DN3200
Please sent us letter and drawing for customization if you have special requirements.
If this product is used for supplying water for high place, anti-pull-off device should be installed if the pipe has or fixed bracket is not as no fixed stay or fixed bracket or the force of fixed bracket is not large than axial force.

Loosen the middle gland nut first, so that the sealing ring is almost inoperable, then adjust the short tube. The adjusted size is 1/2 ΔL, then adjust the joint and remove the first nut of the stud. Install the end of the pipe so that the pipe is centered and the head of the stud is aligned with the pipe flange hole.
The nut pressurization should be symmetrical and gradually tighten.
Then install the other end flange, the analogy.
Gradually press the gland nut symmetrically to fit.
When working, it is found that the partial seal is not strict. The gland nut can be partially pressed to prevent leakage. The seals at both ends are not tight, and the nuts at both ends of the flange are gradually tightened until they are leaked.
