PERFORMANCE

• 

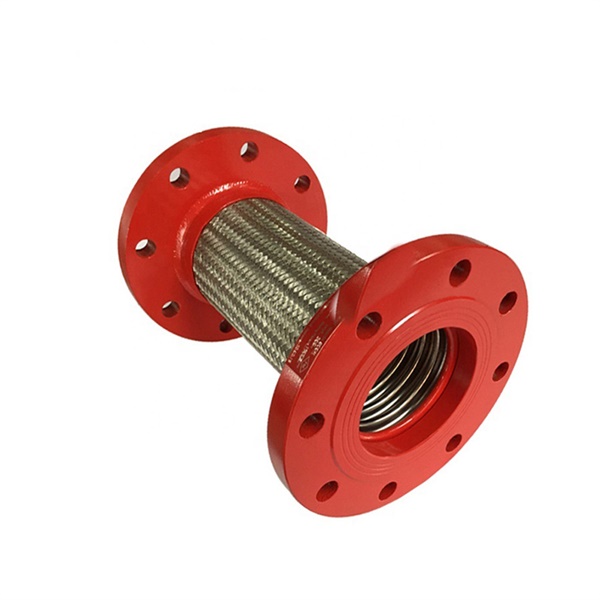

  Stainless steel metal braided hose features::

  1.Flexible hose between pitches with small bending radius.
  2.has good flexibility, no obstruction or stiffness.
  3.the unit weight is light, the caliber consistency is good.
  4.softness, repeated bending, and good flexibility.
  5.Good corrosion resistance and high temperature resistance.
  6.good wear resistance
  7.can provide a variety of color flanges.

• 


  Application:

  Due to corrosion resistance, high temperature resistance and low temperature resistance (-196 ° C ~ +420 ° C), the corrugated braided hose is light in weight, small in size and soft in flexibility. Widely used in aviation, aerospace, petroleum, chemical, metallurgy, electric power, paper, wood, textile, construction, medicine, food, tobacco, transportation and other industries.

• 


  Pipe installation stress:

  In complex piping systems, there are often difficulties due to space position conditions, resulting in installation difficulties: the formed pipe can not be loaded; bending over, coming over, making up the installed pipe will inevitably produce local Cold correction. Depending on the pipe diameter and the specific conditions on site, the amount of cold correction ranges from a few millimeters to tens of millimeters, and some hundreds of millimeters. Practice has proved that the larger the amount, the higher the internal stress, and the installation stress of these residues in the pipeline system is undoubtedly a great hidden danger.
  Because the internal stress generated by bending and bending under the rated bending radius is very small, the metal hose can bring great convenience to the installation work, and also plays a certain role in ensuring the safe operation of the pipeline system. . This is the main reason why some piping systems must use metal hoses.

• 


  Performance characteristics:

  Bellows: The bellows is the body of a metal hose. It is made of stainless steel and has corrosion resistance; hydroforming; it has strong flexibility, flexibility, bending and vibration resistance.
  Net sleeve: The net sleeve is made up of a plurality of strands of wire crossing each other in a certain order, and is set on the outer surface of the metal bellows at a prescribed angle to play the role of strengthening and shielding. The net sleeve not only shares the static load of the metal hose in the axial direction and the radial direction, but also ensures the safe and reliable operation of the metal hose under the condition that the fluid flows along the pipeline to generate the pulse action, and at the same time, ensures that the corrugated portion of the hose is not directly Damaged by relative friction and the like.

WORKING PRINCIPLE

PRODUCT PARAMETERS

NOTES:

1. Flange is available with DIN Standard,ANSI Standard,JIS Standard,and BS Standard.
2. Please sent us letter and drawing for customization if you have special requirements.

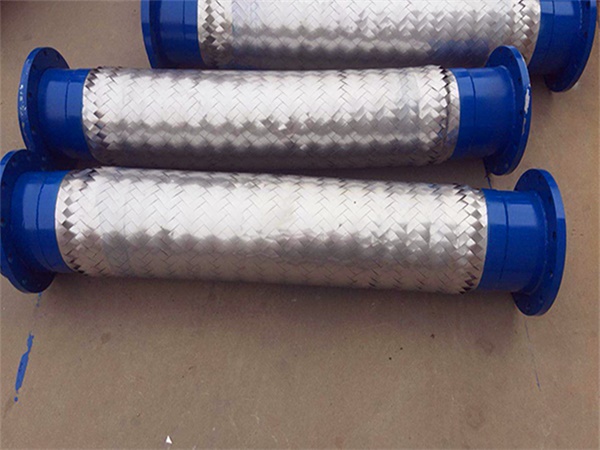

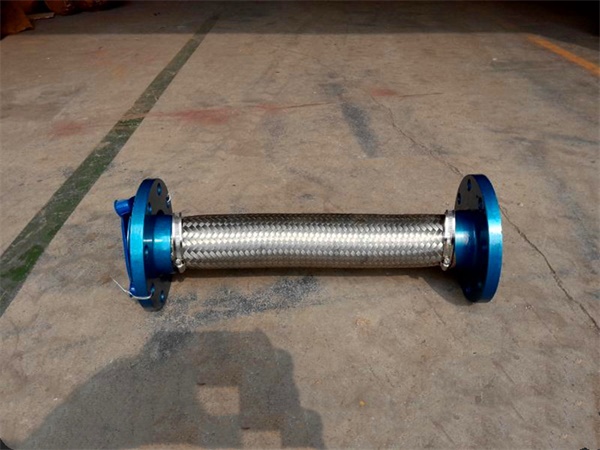

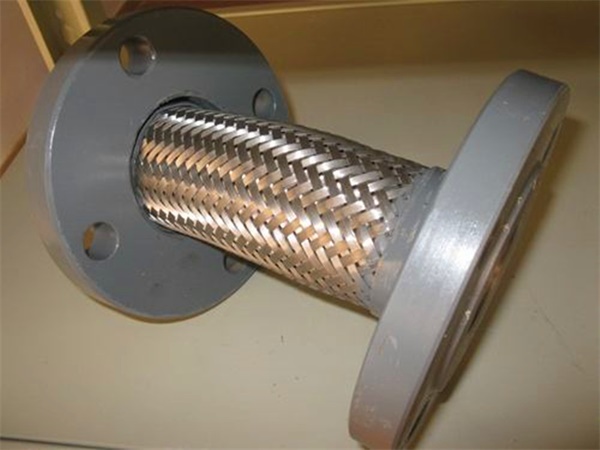

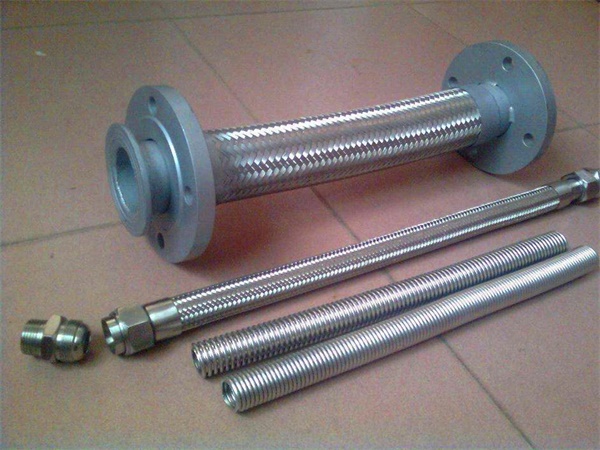

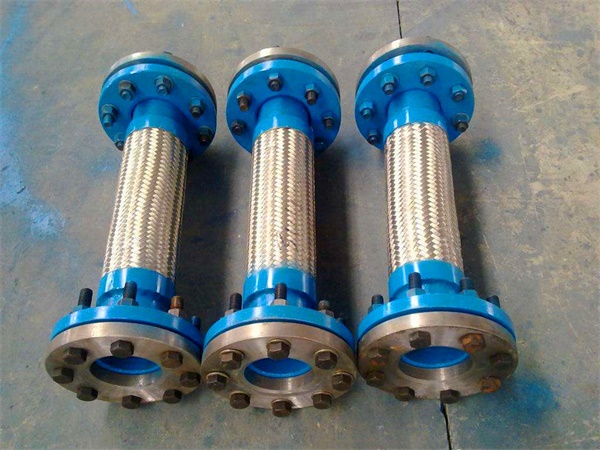

PRODUCT ALBUM

INSTALLATION INSTRUCTIONS

1. When using metal hose, please use metal hose with loose flange at one end for easy installation.
2. The surface of the metal hose should be protected during the welding work at the construction site to prevent the welding slag and arc ignition from burning the metal hose.
3. It is strictly forbidden to twist the metal hose.
4. It should not be bent along the root of the metal hose and should not be bent.
5. The medium to be passed must not be corrosive to the bellows material.
6. Strict installation and installation of the correct installation method.
7. It is strictly forbidden to damage the flange sealing surface by mechanical damage.
