Limit anti – pull rubber joint

2019.10.23
The anti-pulling limited rubber joint device is an ideal substitute for the steel force transmission joint. The anti-pulling limited is used in a reasonable combination, and also plays a role of limiteding the displacement…

The anti-pulling limited rubber joint device is an ideal substitute for the steel force transmission joint. The anti-pulling limited is used in a reasonable combination, and also plays a role of limiteding the displacement, using the limited device and transmitting force. Rubber joints can be used to limited the amount of displacement when used in general piping connections or in pipeline lines where displacement is required.

The ball has a large damping on the rubber material, which can effectively buffer the vibration, suppress and reduce the mechanical vibration, and absorb the impact noise of the fluid.

The ball has a large damping on the rubber material, which can effectively buffer the vibration, suppress and reduce the mechanical vibration, and absorb the impact noise of the fluid.

The limited rubber joint expands when the water flows through the pressure, and the force generated by the pressure is designated as the pressure thrust. If the pipe support and the anchor are not designed to absorb this force, the tie rod across the joint must be added. . The tie rod is designed to withstand full pressure thrust and the drawbar support is integrated into the flange (fixed ring) so there is no thrust on the corresponding flange. The drawbar rubber joint expands when pressed.

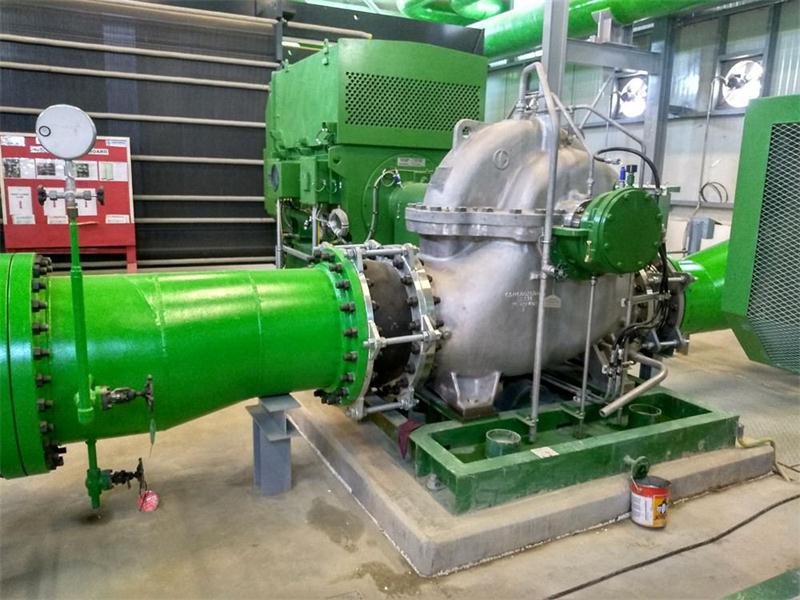

Henan Shunying New Energy Co., Ltd. provides anti-delay limited rubber joints for the Elevo Group water supply project. The customer reported that there was no pulling phenomenon caused by excessive pressure during use, and it absorbed the shock vibration and noise when the pump was pressurized.
