Dismantling joint can reduce the pressure thrust (blind plate force) of the connected parts and compensate for the installation error of the pipeline. Thereby extending the service life of the pipeline and protecting the safe operation of the line. And installed on the pipeline line can facilitate the disassemble and maintenance of the valve, and can overcome the adverse effects of the trap on the pipeline. The C2F removal expansion joint is adjusted according to the size of the field. When working, the axial thrust can be transmitted to the entire pipeline.

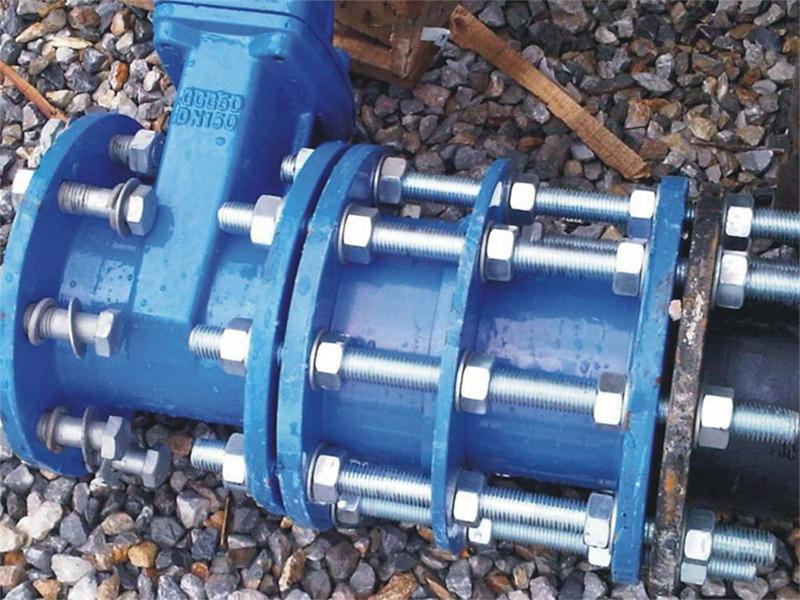

DN100 dismantling joint on-site use, C2F type dismantling joint is suitable for conveying seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, temperature not higher than 250 degrees Medium such as steam and granules. The unloading compensation joint is suitable for the pipelines connected to the flanges on both sides. When installing, adjust the installation length of the two ends of the product and the flange, and tighten the gland bolts evenly in the diagonal direction to make it a whole and have a certain displacement. For easy installation and maintenance, adjust according to the size of the site. The axial thrust can be transmitted to the entire pipe during operation. The strength of the compensation joint body shall be able to withstand the pressure of 1.5 times the nominal pressure, and the pressure shall be kept for 5 minutes without leakage and obvious plastic deformation. The compensation joint sealing pair shall be able to withstand the pressure of 1.25 times the nominal pressure, and the pressure shall be kept for 5 minutes without leakage.
