The pressure range of pressure-resistant metal hose is generally PN0.6-32.0Mpa. The highest is 42.0MPa. The metal hose is the main pressure-bearing part of the hose installed in the pressure pipeline, and it also acts as a sheath for the corrugated pipe. According to the pressure in the pipeline and the application site, one or more layers of stainless steel wire or steel belt can be selected Weave.
Since the main parts of the hose are made of austenitic stainless steel, it ensures the excellent temperature resistance and corrosion resistance of the hose. The working temperature range of the hose is extremely wide, ranging from -196 to 600 ℃. The hose used The corrosion resistance of the hose can be ensured by selecting the applicable stainless steel grade according to the corrosiveness of the medium passing through the pipeline.

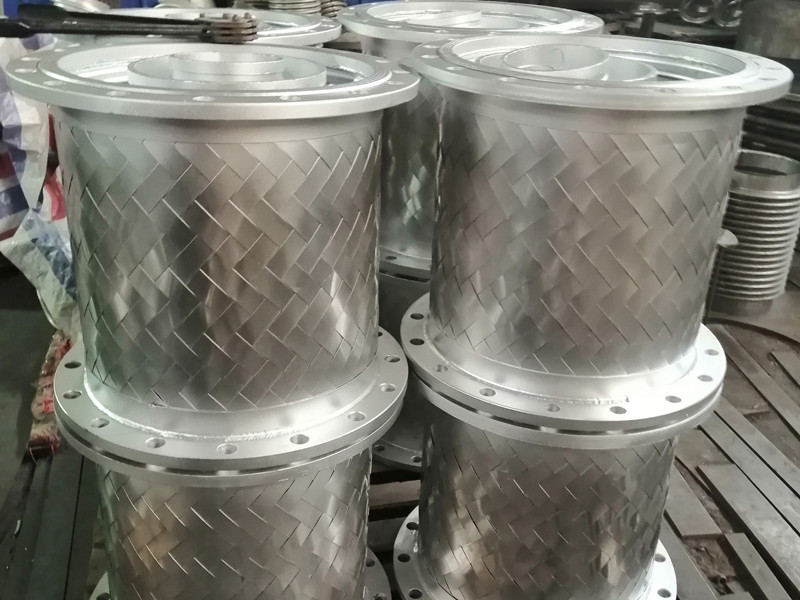

1. The flexible braided metal hose is made of 1Cr18Ni9Ti stainless steel as a whole, which has strong corrosion resistance.
2. The hose body is a thin-walled stainless steel tube that is hydroformed, which has strong flexibility, flexibility, bending and vibration resistance, and the strengthened protection of the braided mesh sleeve makes it have a higher pressure bearing capacity.
3. The connection at both ends of the hose can also be made into other connection methods besides thread and flange standards, which is convenient for connection and use.
4. This product is not only suitable for matching with rotary joints, but also widely used in flexible connections for conveying a variety of fluid media.
Corrosion resistance, high temperature resistance, low temperature resistance (-196℃~+420℃), light weight, small size and good flexibility. It is widely used in aviation, aerospace, petroleum, chemical, metallurgy, electric power, papermaking, wood, textile, construction, medicine, food, tobacco, transportation and other industries.
Advantages of stainless steel metal hose:
1. Flexible hoses between metal hose pitches, with small bending radius.
2. The metal hose has good flexibility, no blockage or stiffness.
3. The unit weight of the flexible joint is light and the caliber consistency is good.
4. The flexible connector is flexible, repeatable and flexible.
5. The metal hose has good corrosion resistance and high temperature resistance.
6. The metal hose is resistant to rat bites, abrasion resistance, and prevents internal wires from abrasion.
7. The metal hose has strong bending resistance, tensile resistance and lateral pressure resistance.
8. The metal hose is soft and smooth, easy to thread, install and locate.
9. There are many hose joints for the metal hose, which is easy to connect with the equipment.
