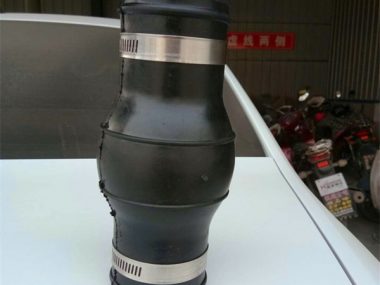

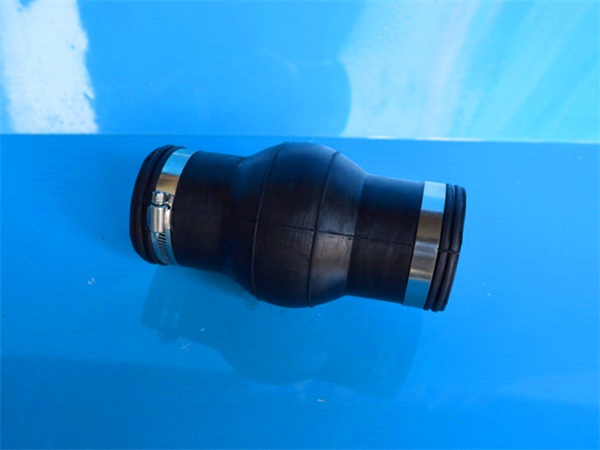

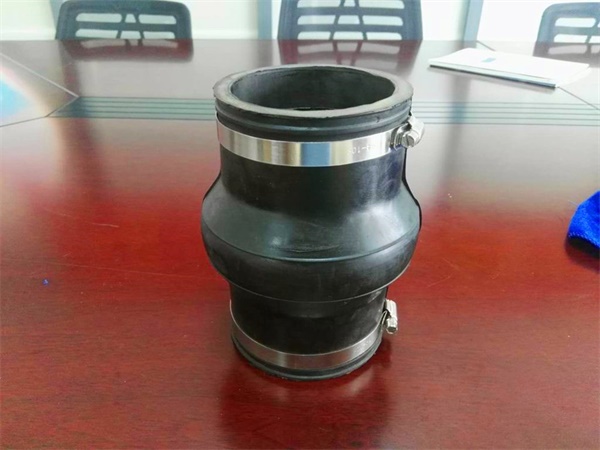

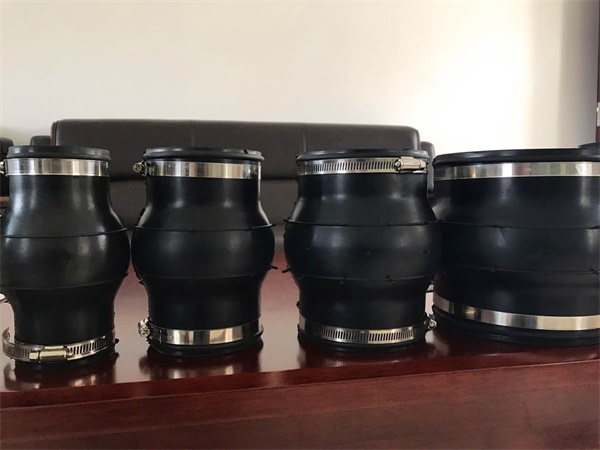

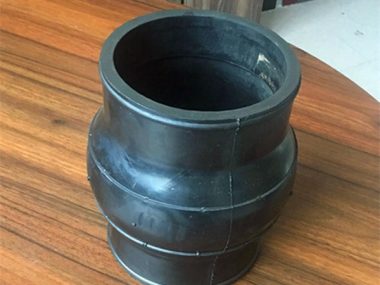

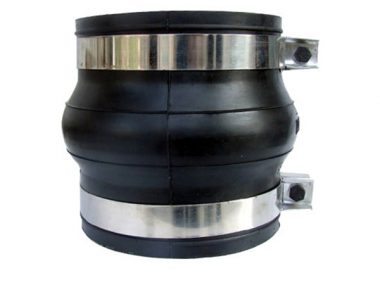

Clamp rubber joints can be customized to any length, any caliber, any thickness. The clamp rubber joint saves flanges and bolts, saves engineering costs, and eliminates the need for flange at the nozzle, simplifying work efficiency.
Simple structure, easy installation, good shock absorption effect, etc.
The rubber joint of the clamp has high temperature resistance, corrosion resistance, anti-aging, no reverse thrust to the equipment, unlimited diameter, light weight, convenient replacement, and the like. Easy to install, low cost and easy to maintain. Reduce vibration, reduce noise, good flexibility and easy to use. The internal density is high and the elastic deformation effect is good. The clamp type rubber joint is composed of a fabric-reinforced rubber member and a clamp fastener, and is used for a joint for vibration isolation, noise reduction and displacement compensation. It is a pipe joint with high elasticity, high air tightness, medium resistance and weather resistance. According to the working pressure: 0.1MPa, 0.6MPa two grades.

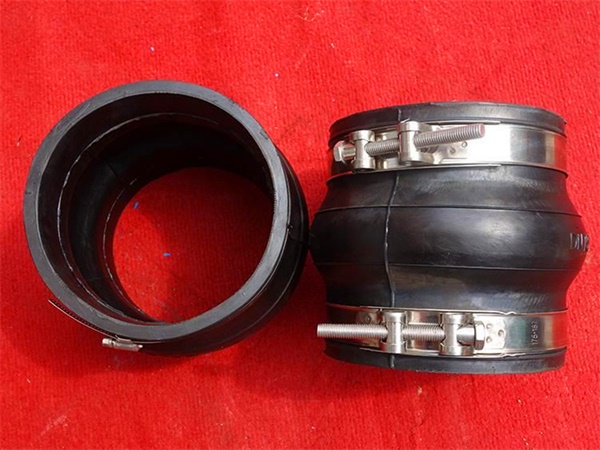

The clamp type is used instead of the flange and the bolt. When used, the two ends of the clamp type rubber joint can be conveniently placed on the official road to be connected, and the rubber joint is fixedly connected with the pipe through the stainless steel clamp; Open the clamp. Thereby, the purpose of compensating the displacement of the pipeline due to thermal expansion and contraction and water delivery is achieved.
Clamp-type rubber joints are connected with pumps and valves, fire-fighting equipment, pipes with large vibrations and frequent changes in heat and cold. Applicable medium: seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam and granular powder. The product range includes oil resistant rubber joints, high temperature resistant rubber joints, acid and alkali resistant rubber joints, wear resistant rubber joints, seawater resistant rubber joints, and corrosion resistant rubber joints.

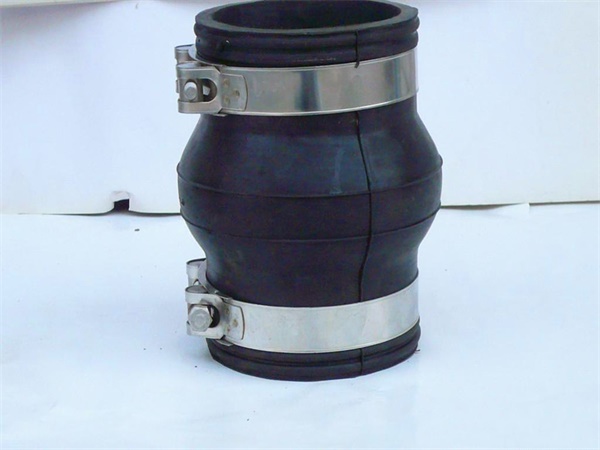

The clamp type rubber joint is composed of a fabric-reinforced rubber member and a clamp fastener, and is used for a joint for vibration isolation, noise reduction and displacement compensation. Compared with general rubber joints, it has the following Characteristics:
Clamp-on rubber joints save flanges and bolts, saving engineering costs.
Crimping rubber joints do not require flanges at the nozzles, increasing productivity.
Clamp-type rubber joints simplify installation and maintenance work and increase work efficiency.
Nominal Diameter(DN) | Length L | Axial Elongation | Axial Compression | The radial displacement | Deflexion angle | |
mm | inch | mm | ||||
50 | 2 | 180 | 7 | 10 | 10 | 15º |
65 | 2½ | 180 | 7 | 13 | 11 | 15º |
80 | 3 | 180 | 8 | 15 | 12 | 15º |
100 | 4 | 180 | 10 | 19 | 13 | 15º |
125 | 5 | 180 | 12 | 19 | 13 | 15º |
150 | 6 | 180 | 12 | 20 | 14 | 15º |
200 | 8 | 200 | 16 | 25 | 22 | 15º |
250 | 10 | 200 | 16 | 25 | 22 | 15º |
300 | 12 | 200 | 16 | 25 | 22 | 15º |
350 | 14 | 200 | 16 | 25 | 22 | 15º |
400 | 16 | 200 | 16 | 25 | 22 | 15º |
450 | 18 | 200 | 16 | 25 | 22 | 15º |
500 | 20 | 200 | 16 | 25 | 22 | 15º |
600 | 24 | 200 | 16 | 25 | 22 | 15º |
700 | 28 | 200 | 16 | 25 | 22 | 15º |
800 | 32 | 200 | 16 | 25 | 22 | 15º |
900 | 36 | 200 | 16 | 25 | 22 | 15º |
1000 | 40 | 200 | 18 | 25 | 22 | 15º |
1200 | 48 | 200 | 18 | 25 | 24 | 15º |
1400 | 56 | 200 | 20 | 26 | 24 | 15º |
1600 | 64 | 200 | 25 | 26 | 26 | 15º |
1800 | 72 | 200 | 20 | 26 | 26 | 15º |
2000 | 80 | 200 | 20 | 26 | 26 | 15º |
NOTES:
